🔌⚙️ Your Essential Testing Tool is Here! ⚙️🔌

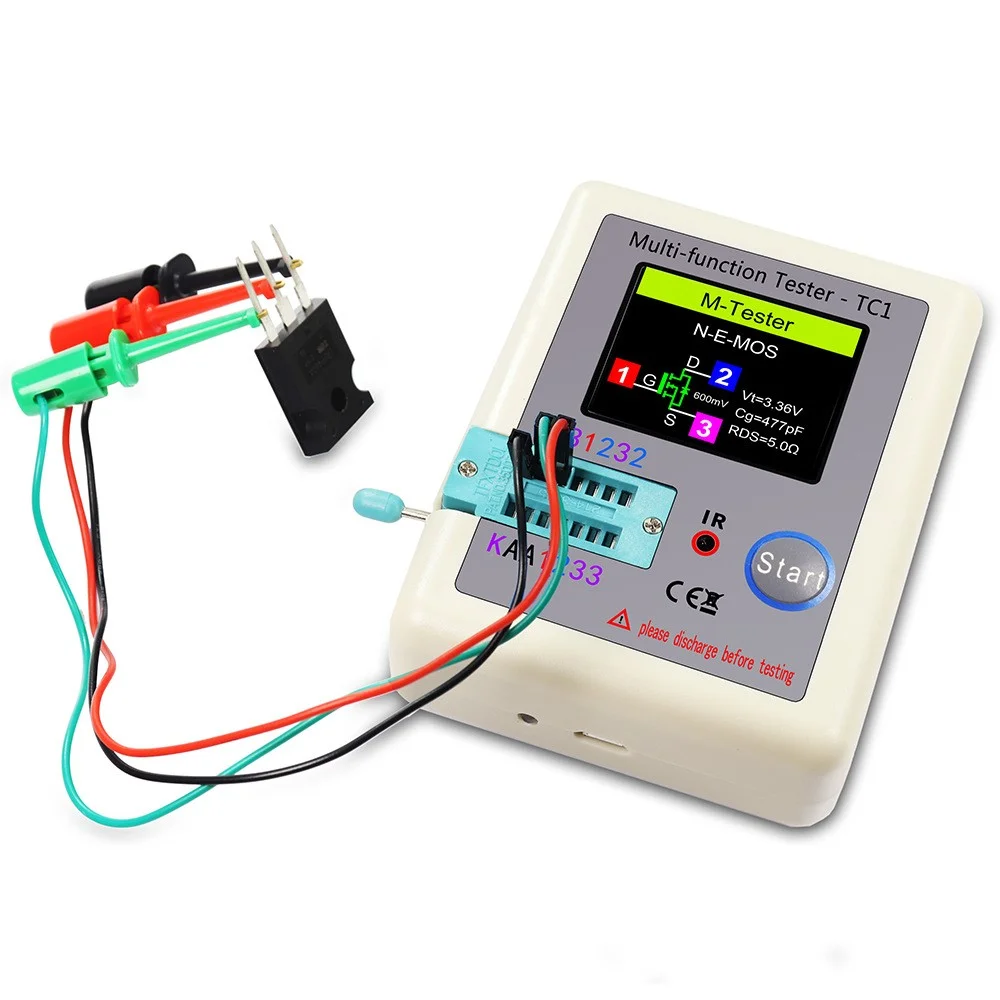

Introducing the Multi-Meter Transistor Tester—the all-in-one device for measuring diodes, triodes, capacitors, and resistors! 🛠️✨
✅ Versatile Functionality: Test a variety of electronic components with accuracy and ease! ✅ User-Friendly Interface: Clear display and simple operation make testing a breeze! ✅ Compact Design: Portable and lightweight—perfect for both professionals and hobbyists! 📏
🌟 LIMITED TIME OFFER! 🌟 Don’t let faulty components hold you back—get the tool you need!
👉 Order yours now and elevate your electronic projects! 🚀
SPECIFICATIONS
AC Current: MOSFET
DC Voltage: 3.7V
Brand Name: RUIBOZHI
AC Voltage: multimeter
Model Number: lcr-tc1
DC Current: ESR
Display Type: Digital display
Hign-concerned Chemical: none
Measuring Resistance Range: 0.01-50MΩ
Measuring Capacitance Range: 25pF-100mF
Measuring Inductance Range: 0.01mH-20H
RUIBOZHI Model: LCR-TC1
Origin: Mainland China
Certification: CE
DIY Supplies: ELECTRICAL

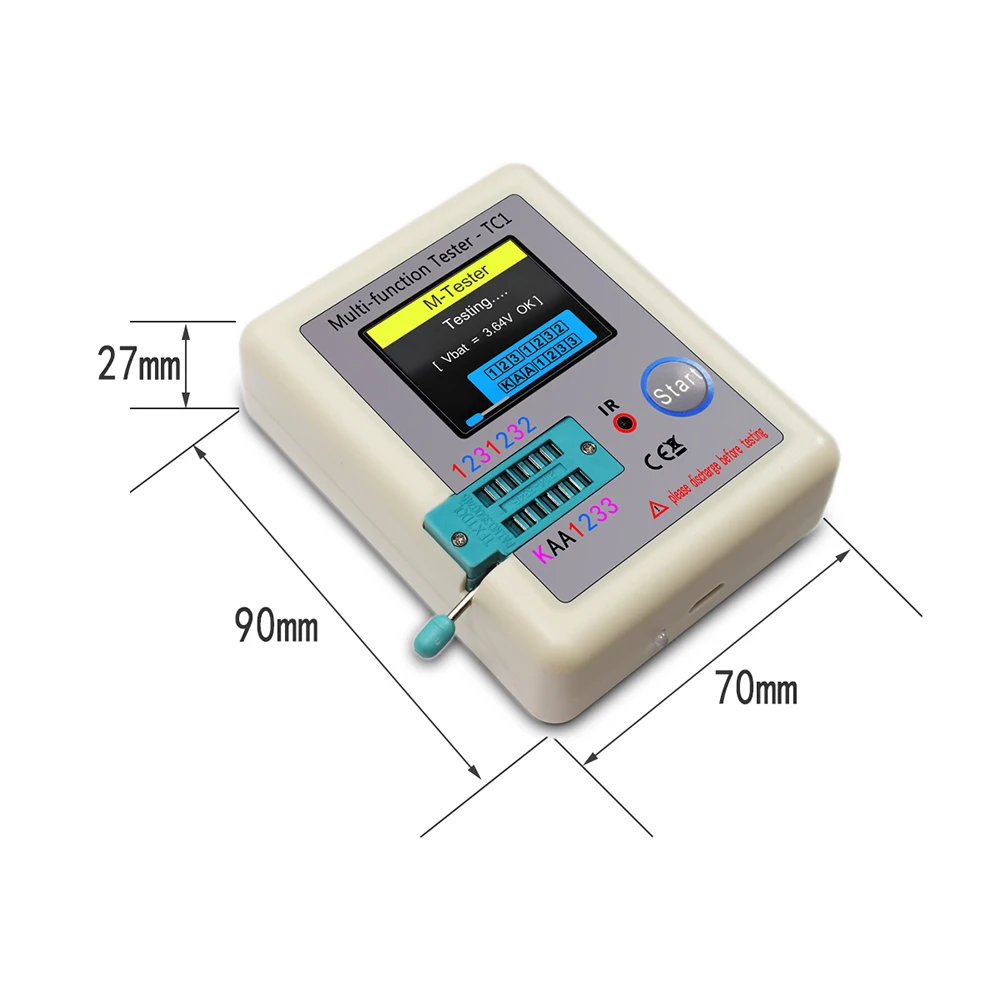

Dimensions: 70*90*28MM
Operating Temperature: 0 - 40 ℃
Is Smart Device: no
Operating Mode: Handheld
Choice: yes
semi_Choice: yes
Cautions for use：
The capacitor shall not be tested without discharge
The inductance of the transformer cannot be tested
Don't test online with electricity
Do not hook three hooks onto the circuit board for testing
Do not test live circuit boards
Otherwise, the tester will be burnt down. Burning the tester is the buyer's reason.
When the voltage and internal battery are below 3V, please charge before use.
Please use 5V battery or USB port to charge.
Product Description
This is a cost-effective and widely used transistor detector. Can be used to detect NPN and PNP transistors, capacitors, resistors, diodes, triodes, N-channel and P-channel MOSFETs, thyristors, batteries, etc. Can also be used to detect infrared waveforms.
Features:
Can be widely used to detect NPN and PNP transistors, capacitors, resistors, diodes, transistors, N-channel and P-channel MOSFETs, IGBTs, JFETs, thyristors, batteries, etc.
. Zener diodes can also be detected and have a functional self-calibration.
After the detection is completed, point the infrared remote control at the "IR" light, and then press the button on the remote control. If the detector decodes successfully, the data code and infrared waveform will be displayed.

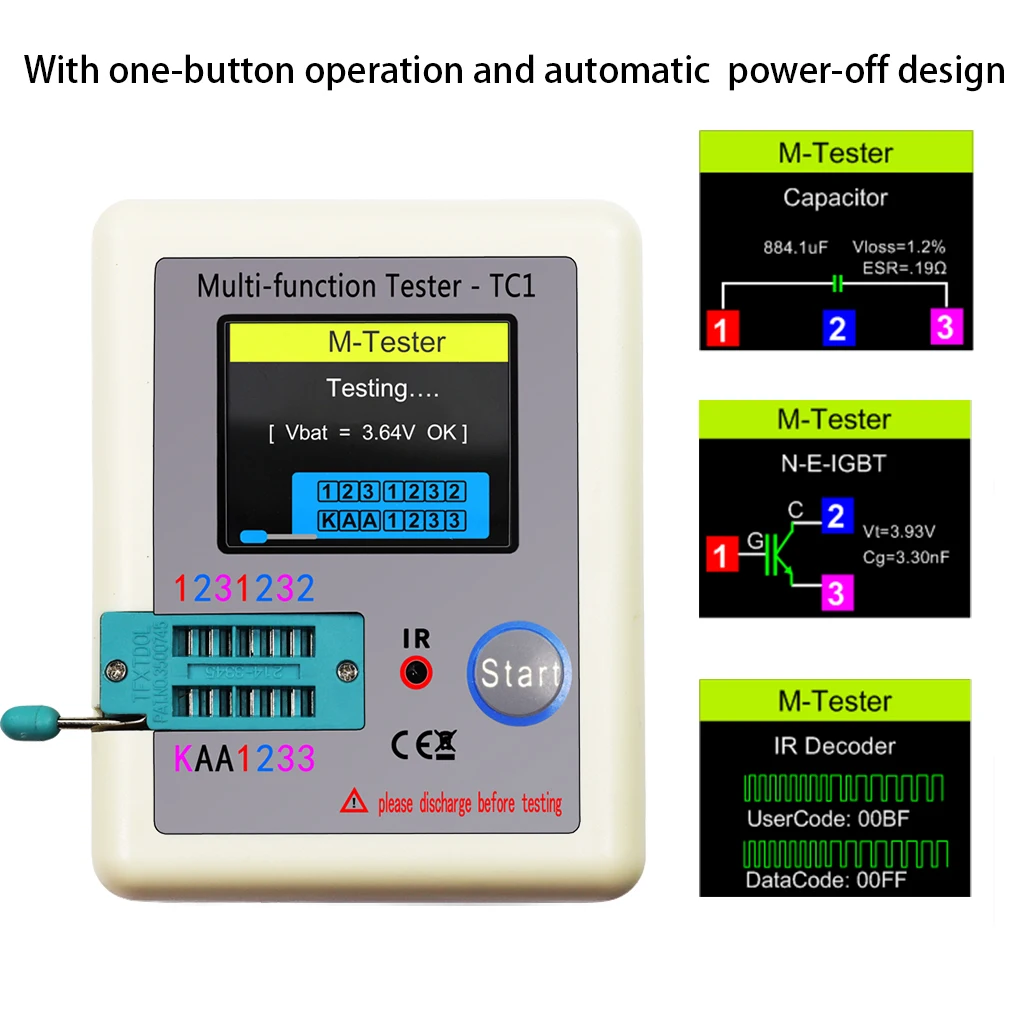

One-key operation, automatic detection and shutdown, you can also press the multi-function button to turn off the detector.
Place the pins of the components in the corresponding area, turn the small handle, the detector will automatically detect, and the final result will be clearly displayed on the backlit TFT screen.
Instead of the usual black and white display, this detector will display the results in color.
Specification:
Power Mode: Rechargeable Lithium Battery
Display: 3.5*3cm TFT screen
Diode Range: < 4.5V
Zener diode: transistor detection area: 0.01-4.5V Zener diode detection area: 0.01-20V
Triac Range: IGT < 6mA
Capacitance: 25pF- 100mF
Resistance: 0.01-50MΩ
Inductance: 0.01mH-20H
Battery: 0.1-4.5V
Product chip: High-performance mcu

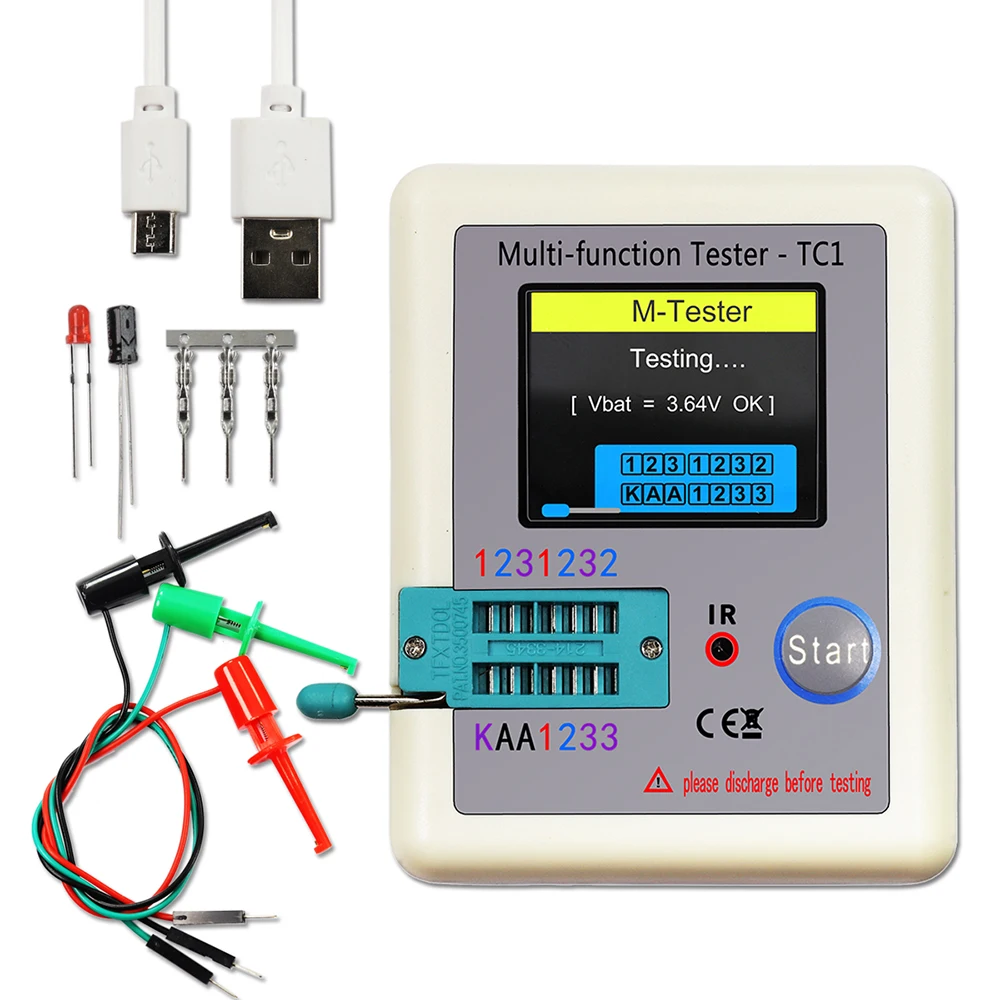

Package Included:
1* Multifunctional TFT Transistor Tester
1*Electronic components set
1*Cable
3*Test hook
